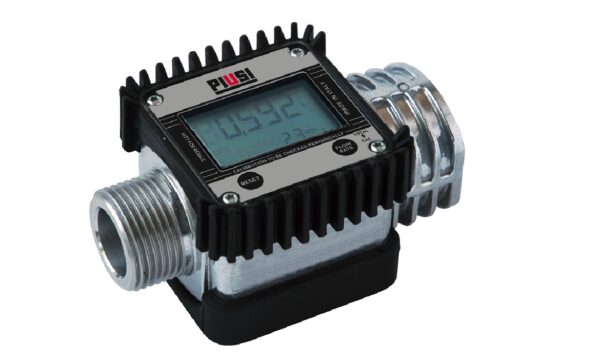

K24 digital flow meter

The PIUSI K24-A is a digital turbine flow meter suitable for diesel fuel control and digital management of dispensed fluid.

PRECISION AND QUALITY

The K24-A digital diesel fuel flow meter was designed to control the flow of low-viscosity fluids. Easy to install, either in-line or at the end of the delivery pipe, the K24-A features a multi-position display for easy reading. Thanks to its robust housing and sealed internal circuit board, it can be used in virtually any working environment.

RELIABILITY

The K24-A has an aluminum body and a polypropylene turbine. The pulse type is a single-channel reed switch. The electronic circuit board with LCD displays a partial 5-digit reading from 0.1 to 99999, for a total of 6 digits from 1 to 999999, which is resettable. The display also shows the supported flow rate, up to a maximum of 120 l/min.

The K24-A diesel fuel flow meter guarantees a measurement accuracy of +/- 1%. If the measurement proves inaccurate, the K24-A can be calibrated for improved performance. With a pressure drop of < 0.03 bar at 120 l/min and a repeatability of 0.2%, the K24 flow meter is powered by two AAA batteries. Thanks to its rotating display, the K24-A adapts to all applications and working conditions. K24-A IS COMPATIBLE WITH ALL BIODIESELS

Thanks to its structural characteristics, the PIUSI K24-A is suitable for ALL BIODIESELS and can be safely used to measure biodiesel of any blend and origin.
